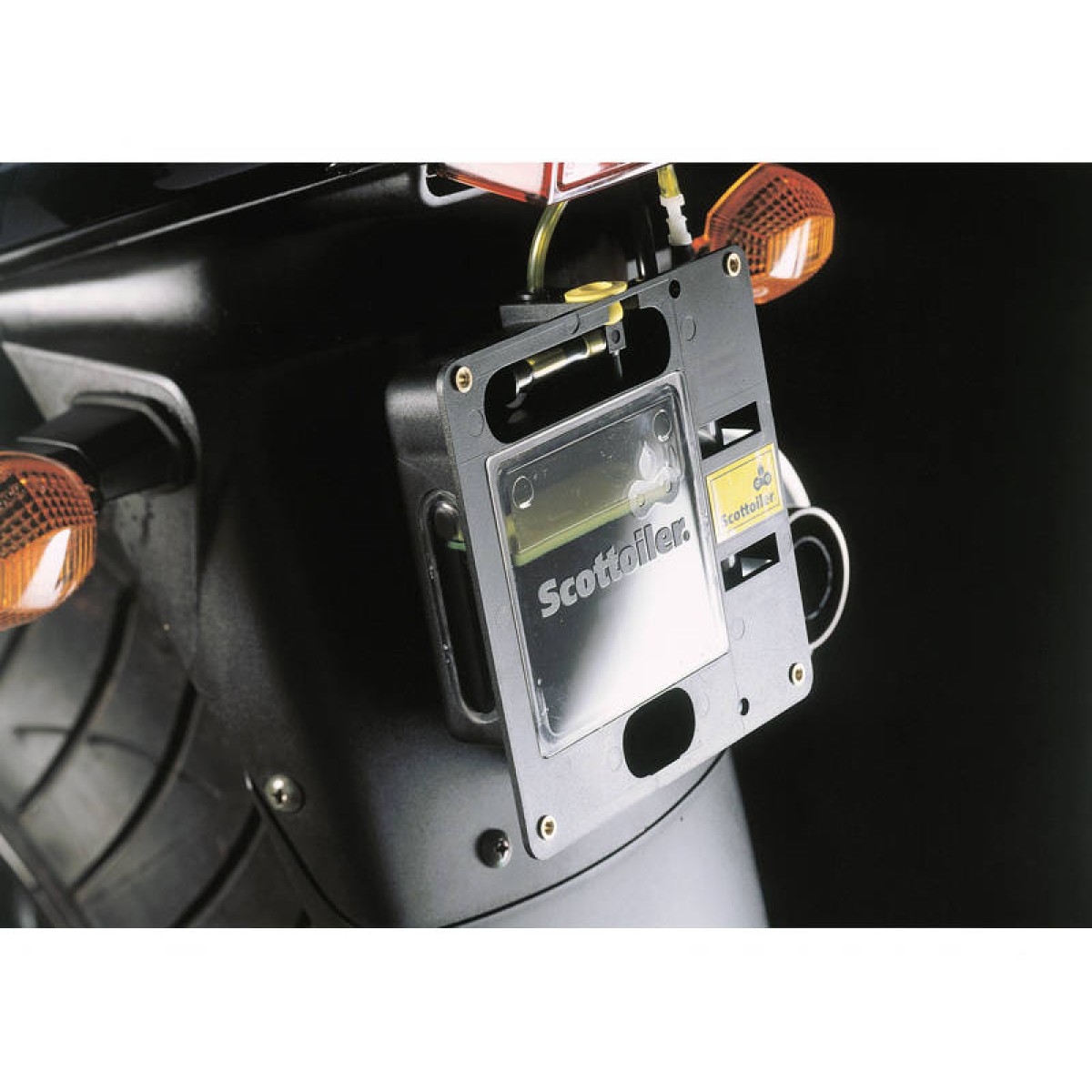

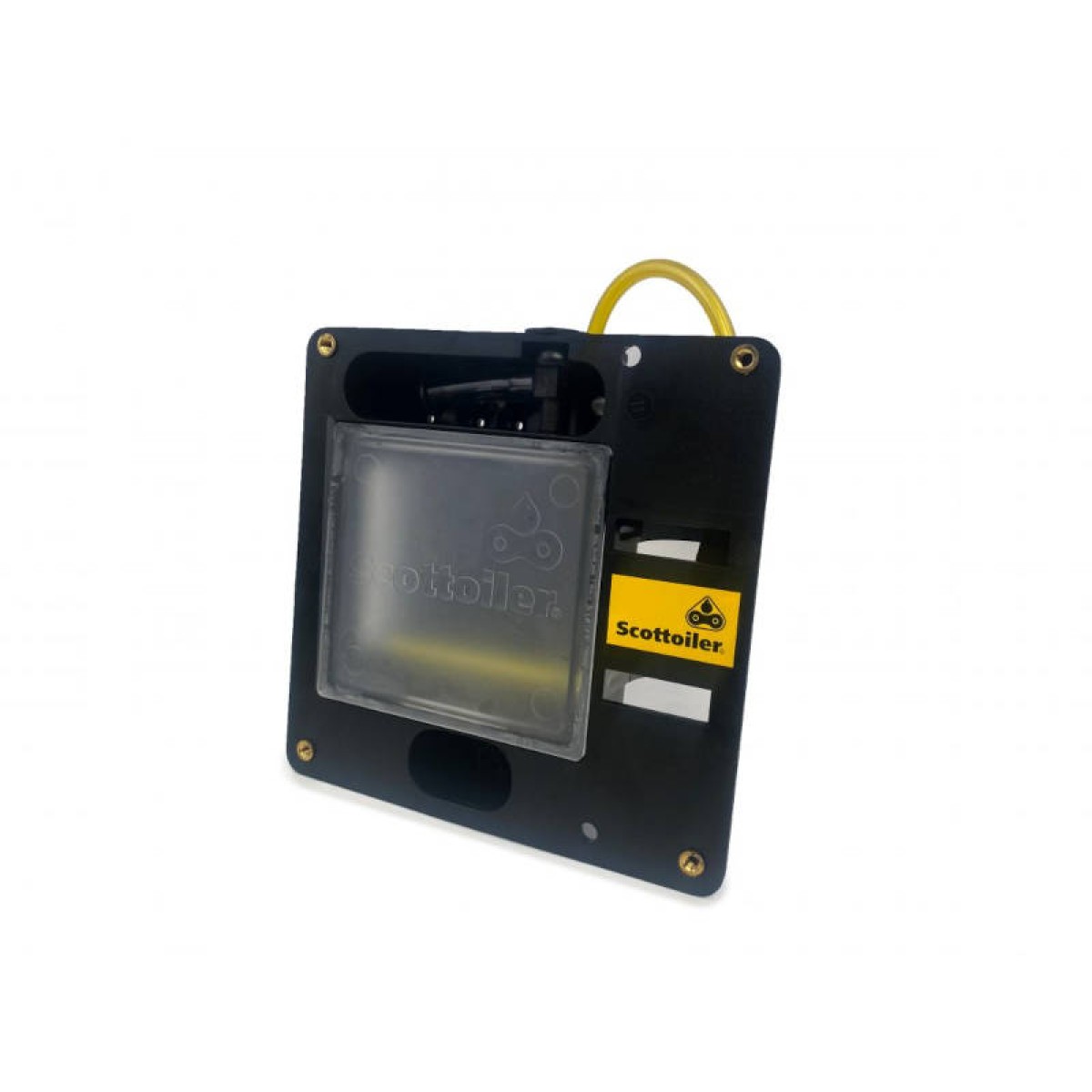

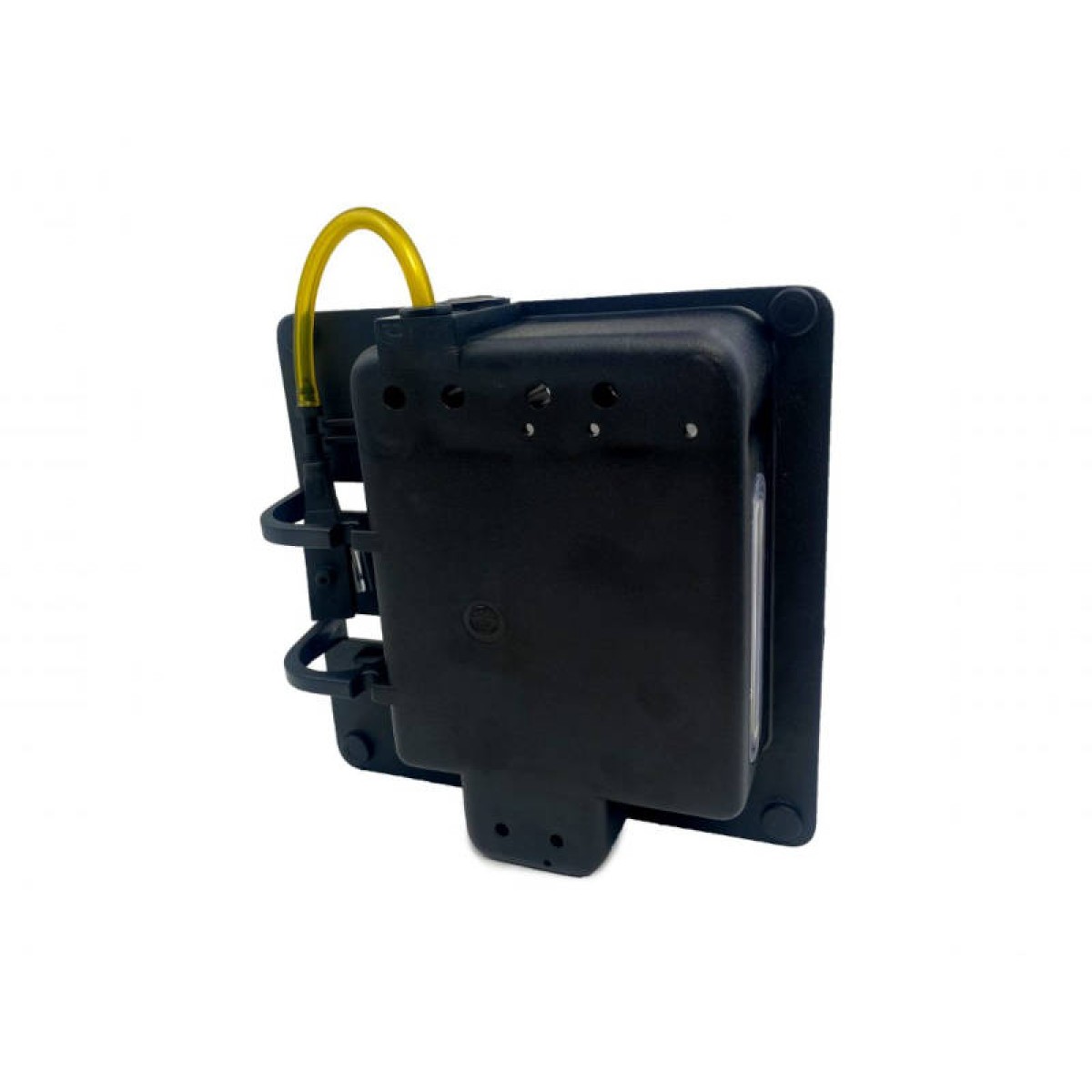

The Magnum HCR is an additional reservoir which mounts on the back of the bike behind the number plate, increasing the range of your Scottoiler kit by up to 8 times.

This addition to your Scottoiler Kit increases oil capacity from 50ml (1.76 fl oz.) to 400ml (14.08fl oz.), and will give you up to an additional 10.000 miles between refills (depending on your flow rate setting). This is an ideal addition for any biker who will be travelling long distances, or for any biker who wants to minimise the number of times they have to refill the system.

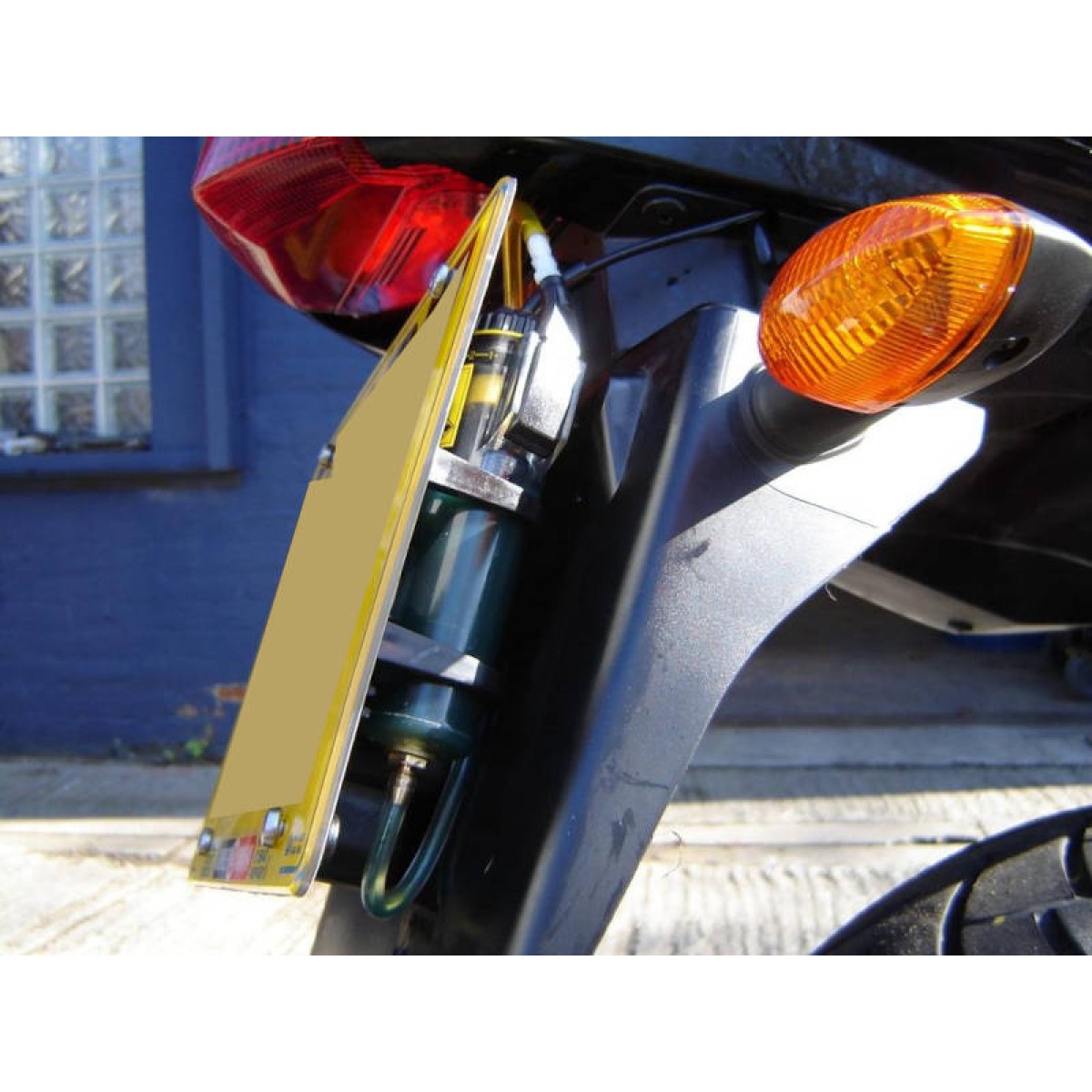

To fit the Magnum, simply remove the number plate and mount the unit with the parts supplied. To connect up the reservoirs simply attach the Magnum to the breather on the operating reservoir and slot them together. The main reservoir should draw the oil through from the Magnum by siphoning, allowing you to ride further and for longer between refills.

Please be aware that not all bikes are capable of mounting the Magnum HCR without modification. Firstly, your rear mudguard and number plate mount must be capable of handling the extra weight and secondly, it must be possible to move your number plate back without compromising the effectiveness of its light. If in doubt, call us before ordering.
